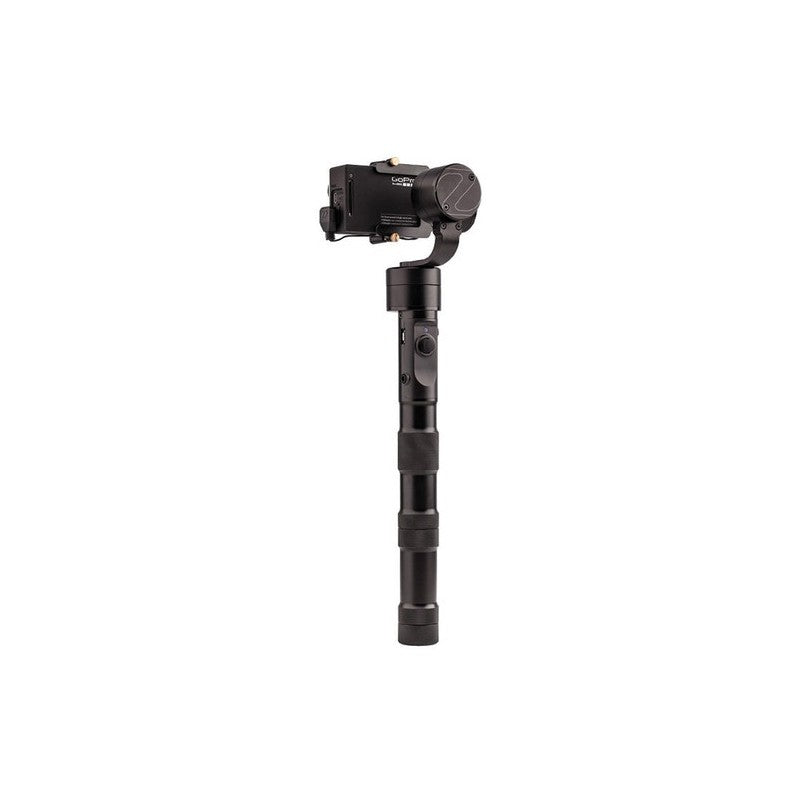

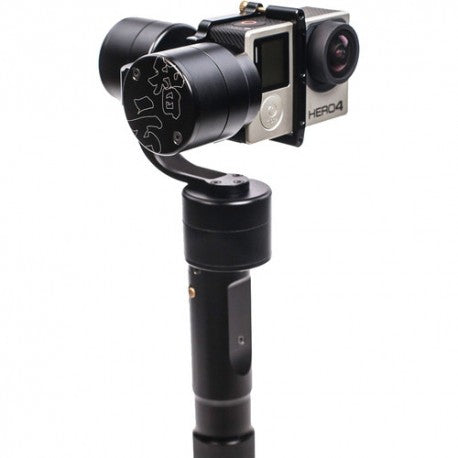

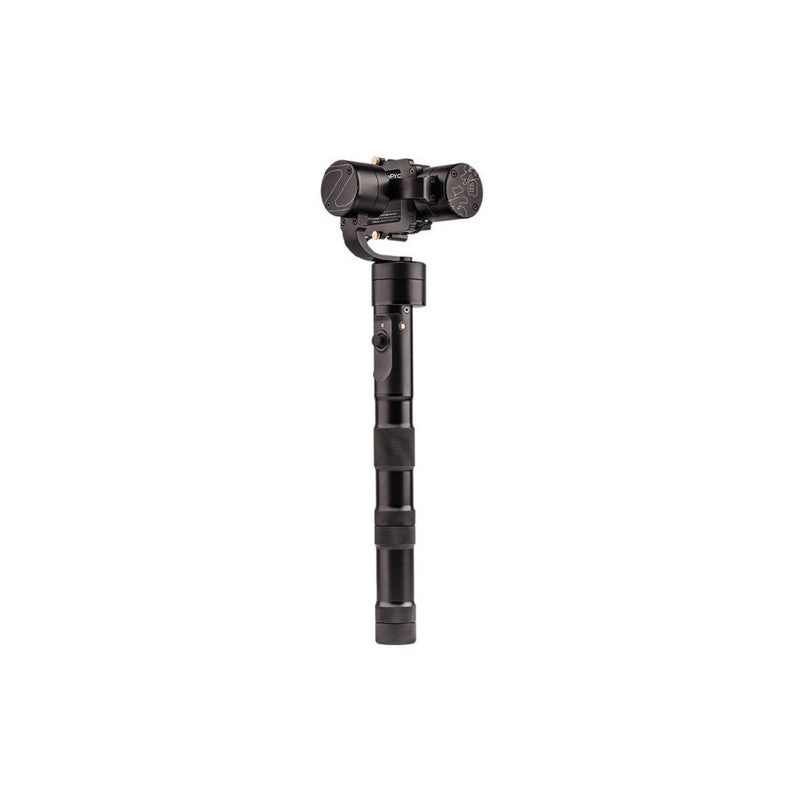

Zhiyun Evolution | 3 Axis Zhiyun Handheld Gimbal for GoPro Camera

Camera Sold Separately

Tech Specs:

Battery

Output Voltage

Standard： 5 v

Operation Temperature

Max： 45 °C
Standard： 25 °C
Min： -10 °C

Battery Runtime

Max： 15 h
Standard： 13 h
Min： 11 h

Charging Time

Standard： 3 h

Operation Voltage

Max： 12.6 v
Min： 6.8 v

Stabilizer

Following Deviation in Motion State

Max： ± 0.3 °
Standard： ± 0.1 °
Min： ± 0.05 °

Following Deviation in Static State

Max： ± 0.04 °
Min： ± 0.01 °

Tilt Mechanical Range

Standard： 320 °

Roll Mechanical Range

Standard： 270 °

Pan axis movement angle range

Standard： 320 °

Valid Payload

Max： 160 g

Packing List

Battery Compartment

1

User Guide

1

Camera Charging Cable (3P)

1

Video Output & Charging Cable (4P)

1

Micro USB Cable

1

18650 Li-ion Battery

2

18650 Battery Charger

1

Camera Protection Sticker

1

Stabilizer

1

Packing Specifications

Product Dimensions (mm)

96*88*279 (W*D*H)

Packing Size (mm)

295*132*53 (L*W*H)

Carton Size (mm)

350*320*320 (L*W*H)

Product Net Weight (g)

310 /Units

Product Net Weight (g)

850 /Units

Packing Weight (kg)

10.5 /Carton (10Units/Carton
